2RU Rack Mount for MCLN/MCGN Series – FR2-16-z-B

2RU Rack Mount for MCLN/MCGN Series – The KBC 2RU 19″ FR2-16-z-B chassis card cage for powering up to 16 MCLN/MCGN series media converter modules. 0°C to 50°C (32°F to 122°F) operating temp. 100~240VAC, 50/60Hz.

Ref. FR2-16-z-B Categories: , , Tags: , ,

Description

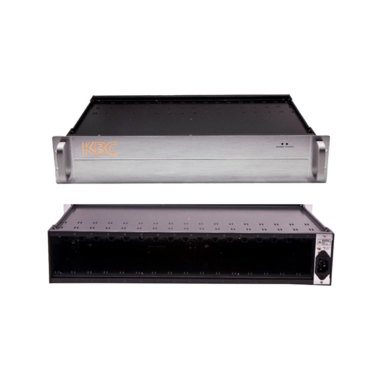

The KBC FR2-16-XXX-B is a 2U rack with 16 slots. Each slot can insert a card version of the following media converters:

  • MCLN1-XXX-XX-B
  • MCLN2-XXX-XX-B
  • MCLS1-XXX-XX-B
  • MCGN1-XXX-XX-B
  • MCGN2-XXX-XX-B

The rack can hold a total of 16 media converters. All cards located within the rack are hot-swappable. There is no need to power down the chassis when replacing or making additions to the
rack. All electrical and optical connections are on the rear. A dual redundant PSU option is available with the second PSU requiring one slot of the chassis, leaving 15 slots for card modules.

Specifications

  • Power input: 100~240VAC @2A
  • Slots: 16(*)
  • Material: Aluminum
  • Weight 2.5kg
  • Operation temperature 0 ~ 50°C
  • Operating humidity 0 ~ 95% non-condensing
  • MTBF >100000 Hours
  • Size(mm) 482(W) x 290(D) x 88(H)

Downloads

2RU Rack Mount for MCLN/MCGN Series – FR2-16-z-B

Specsheet-FMCR2_Series-Rev1709 2RU 19"
