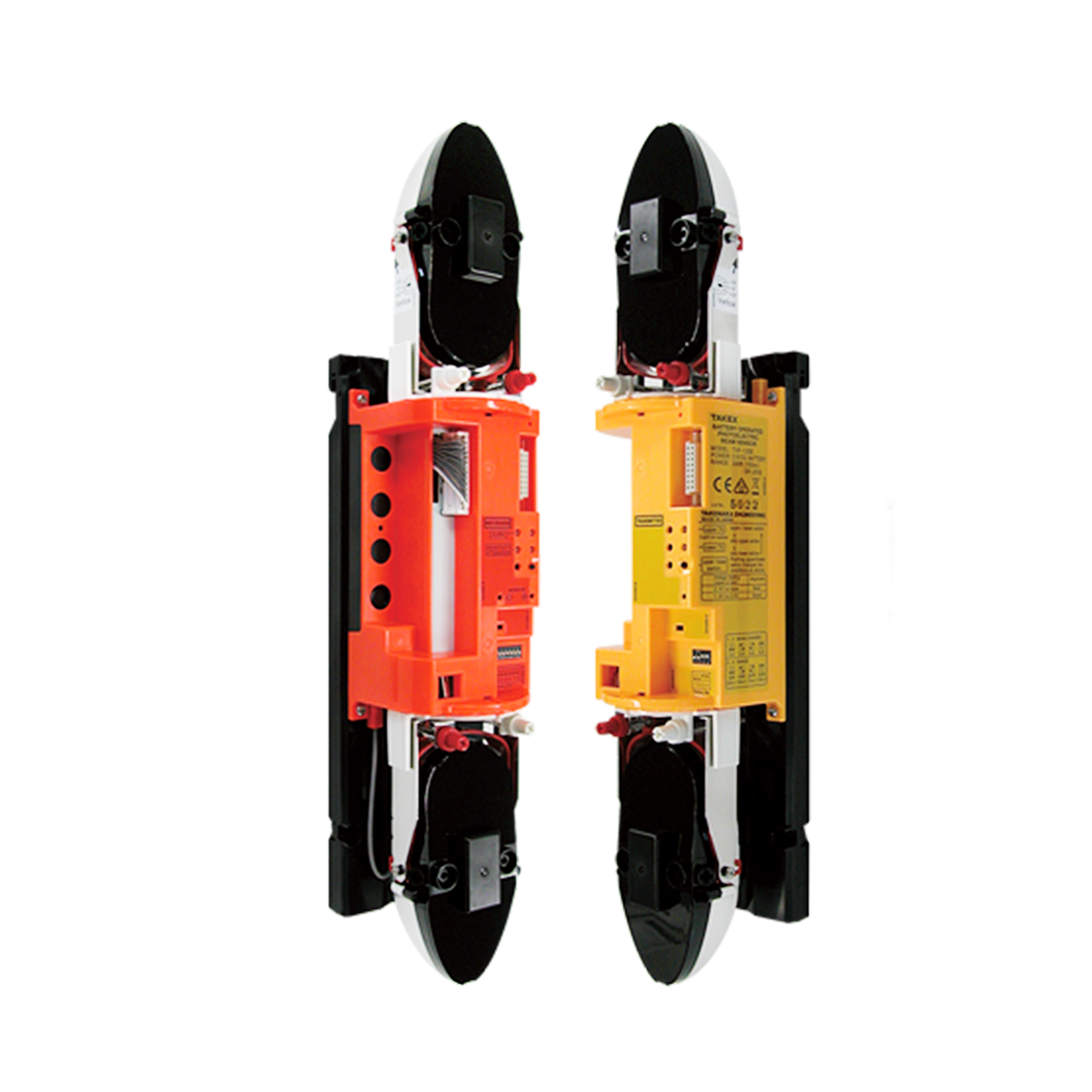

Battery powered quad beam TXF-125-KH

The TXF-125-KH is a battery operated quad beam sensor for use in beam towers, compatible with leading wireless systems. It reduces the time and cost of permanent installations and allows the use of active infrared beams on rapid deployment or temporary installations.

Ref. TXF-125-HK Categories: , Tags: , , , , ,

Description

With 4 selectable frequencies, multiple beam sets can be used in both linear and stacked configurations without risk of crosstalk, further assisted by a transmitter power function that allows the user to set 25/50/75/100m zones.

Two 3,6V (17Ah) batteries can power each unit for approximately 5 years of service, and ±90° horizontal/±20° vertical adjustable optics cater for the most dynamic of terrains.

Features:

  • 4 x synchronised high power beams
  • 4 selectable operation ranges 25/50/75/100m
  • 4 selectable beam channels to prevent crosstalk
  • up to 5 year battery life using 2 x LS 33600 (3,6V 17Ah) batteries per unit
  • increased beam separation minimises nuisance alarms
  • vivid internal colour aids beam alignment procedure
  • ±90° horizontal ±20° vertical adjustable sensor heads
  • environmental monitoring circuit

Specifications

  • Model: TXF-125-HK
  • Detection system: Near infrared pulsed beam interruption system (TR-RE 4 beam simultaneous interruption).
  • Infrared beam: Single modulation pulsed beam by LED (near infrared beam light-emitting diode).
  • Protection distance: Outdoor 100m (330ft) or less
  • Beam power setting:  100m (330ft) / 75m (245ft) / 50m (165ft)  /  25m (82ft)
  • Response Time: 0,05 sec, 0,10 sec, 0,25 sec, 0,5 sec
  • Battery: SAFT: LS 33600 (or equivalent) 3,6V, 17Ah
  • Battery life: Transmitter = Up to 5 years* (2 batteries) – Receiver = Up to 5 years* (2 batteries) – *Approximate, not guaranteed
  • Beam Adjustment: Horizontal : ±90° / Vertical : ±20°
  • Alarm LED: Red LED (Receiver) | ON : when an alarm is initiated
  • Attenuation LED: Red LED (Receiver) ON: when an alarm is initiated
  • Ambient temperature range: – 10° C to + 50° C (14°F to 122°F)
  • Functions: Sound chec, Monitor jack, Upper/lower beam switch, Low battery indication, Wireless alignment checker connection, Battery saving, Repeat output, Battery sharing
  • Mounting positions: Outdoor / Indoor
  • Weight:Transmitter: Sensor Unit 500g ,Base 620g excluding batteries Receiver: Sensor Unit 550g, Base 620g excluding batteries
  • Appearance: Cover: PC/ABS resin, Base: ASA resin Black

Accesories

If you need some information about related accessories, please consult us.
