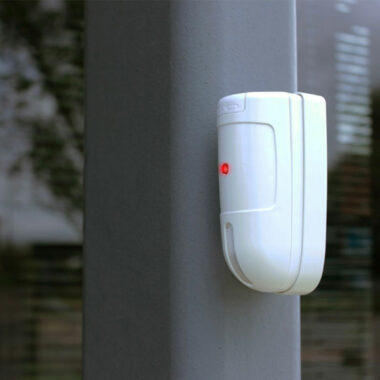

The Pearl sensor is an outdoor detector, which uses PIR, anti-masking and microwave sensors for triple detection. The detector will aid to protect properties against crime with its invisible curtain.

Ref. PEARL GJD 140 Categories: , Tags: , , , , , ,

Description

The Pearl sensor is an outdoor detector, which uses PIR, anti-masking and microwave sensors for triple detection. The detector will aid to protect properties against crime with its invisible curtain.

The Pearl can be positioned to look across windows, doors or the entire length of the house or property wall.

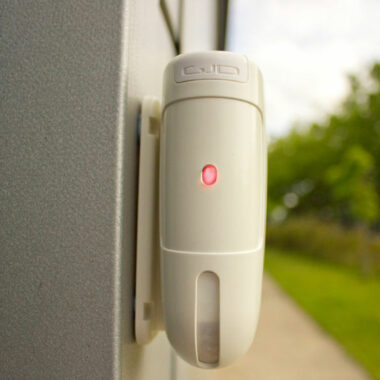

The Pearl detector is supplied with a customisable “T” bracket for narrow beam applications protecting across a door or window. An additional swivel bracket can be purchased for applications that require a customisable pan and tilt angle.

Specifications

  • PRODUCT CODE: GJD140
  • DETECTION RANGE: 3m, 6m, 9m, 12m
  • NORMALLY CLOSED ALARM: 50mA 24Vdc alarm time 10s
  • NORMALLY CLOSED MASKING: 50mA 24Vdc
  • NORMALLY CLOSED TAMPER: with 20 Ω impendence 50mA
  • POWER INPUT: 12V +/- 3V @ max 40mA.
  • During installation the DC supply fault current shall be limited to a maximum of 1A
  • OPERATING TEMPERATURE: -20ºC to +55ºC
  • TEMPERATURE COMPENSATION: Digital
  • MICROWAVE FREQUENCIES: GJD140 – 10.587GHz UK | GJD141 – 10.525GHz
  • MAX BEAM PATTERN AREA: 12 x 2m
  • DIMENSIONS: 117mm(h) x 44mm(w) x 41mm(d)
  • T-BRACKET: 120mm(h) x 68mm(w) x 50mm(d)
  • BOXED: 125mm(h) x 93mm(w) x 58mm(d)
  • WEIGHT: 154g
  • PACKED WEIGHT: 200g
  • CABLE (<200m): 8 core 7/0.2mm
  • WALK TEST: Using LED indication
  • RECOMMENDED MOUNTING HEIGHT: 2 – 2.5m
  • SWIVEL BRACKET ACCESSORY: GJD 149

Accesories

If you need some information about related accessories, please consult us.

Downloads

Datasheet PEARL GJD 140

Manual PEARL GJD 140
