Description

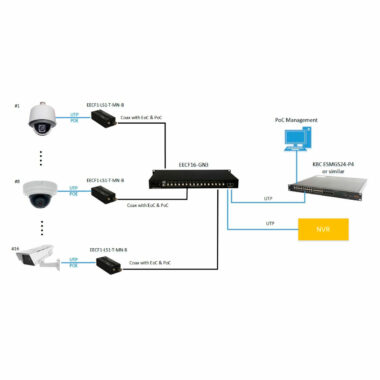

The KBC EECF1-LS1-T-MN-B is a fully ruggedized Ethernet over coax transmitter. This transmitter provides connectivity for one 10/100Mbps IEEE standard twisted pair copper port over a 75ohm coaxial cable. Power is supplied from one of the headend Receivers, EECF16-GN3-R, EECF8-GN3-R, EECF4-DN1-R, or EECF1-LN1–R Ethernet over coax switch through the coaxial cable by Power over Coax (PoC) technology. This transmitter provides PoE/PoE+ support. Varying data rates are supported depending on cable distance and quality. The plug-and-play design ensures ease of installation with no electrical adjustment needed. LED indicators are provided to clearly show the operational status of the unit. The size of the transmitter is suited for fitting inside camera housing and where space is minimal.
Features:
- 3af/802.3at compliant
- PoE+ (30W) and Power over Coax
- Coax data rate >50Mbps (300m) based on coax quality
- PoE+ is supported up to 300m based on coax quality and applied voltage to headend
- Powered by PoC from Headend: EECF16-GN3-R, EECF8-GN3-R, EECF4-DN1-R, or EECF1-LN1-R
- Complete protection design including surge protection, lighting protection
- Unique PoC transmission protection design together with 1,4,8 and 16 channels
