Sensor Speaker

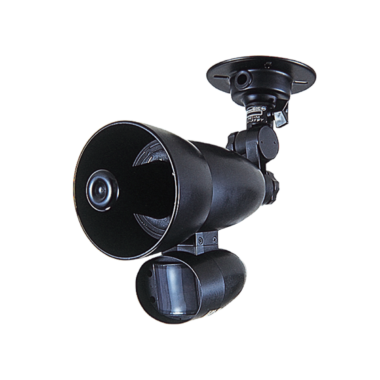

Horn Speaker Sensor AV-100E

The AV-100E is a horn-type speaker Sensor with built-in microphone. A N/O input is required to trigger the playback of your recorded message. 100dB Horn Speaker.

Ref. AV-100E Category: Tag:

Description

The AV-100E is a horn-type speaker sensor with built-in microphone. A N/O input is required to trigger the playback of your recorded message.

Features:

  • Genuine Speech Synthesis Device (Requires external trigger)
  • N/O input contact for Activation
  • Easily record your own message (up to 8 seconds) using built-in Microphone
  • Memory Back up for 20 days without power
  • Horn Speaker Type 100dB/1m (max)
  • Suitable for Indoor/Outdoor Use

Specifications

  • Model: AV-100E
  • Product type: Horn Speaker
  • Supply voltage: 12VDC (non-polarity)
  • Current consumption: 20mA or less at standby – 500mA or less at activation (max. volume)
  • Alarm input (to trigger): Dry contact N/O – Contact capacity: 10mA or more
  • Sound synthesis: ADM method
  • Record method: Built-in condenser microphone
  • Record/playback time: 8 seconds – Sound memory capacity: 256kb S-RAM
  • Memory back-up: More than 20 days with non-electrified conditions (temp: 25°C, initial 30min charge required)
  • Sound output operation: One-shot 8 sec. playback after detection (no re-trigger action during playback)
  • Sound output power: Max 2W over 100dB (1m ahead) at correct record level
  • Volume adjustment Continuously variable from 0 to max.
  • Indication LED: Record: Level indicator function – Playback: LED on during playback
  • Ambient temperature range: -20°C to +50°C (-4°F to +122°F) no dew, no frost
  • Installation: Indoor / outdoor (rainproof), screw on flange
  • Weight: 1050g (37oz)
  • Appearance: PC resin (black)

Accesories

If you need some information about related accessories, please consult us.

Downloads

Datasheet AV-100E TAKEX

Manual AV-100E TAKEX
