Description

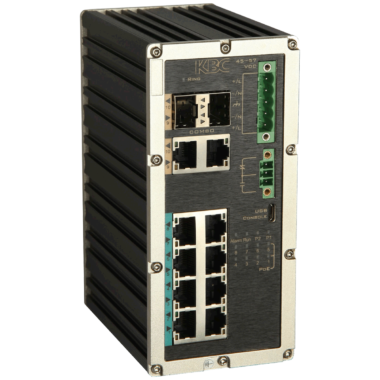

The KBC ESMGS8-C2-B series is a high performance 10 port, industrial, managed gigabit Ethernet switch with eight 10/100/1000M PoE ports and two gigabit combo ports. The eight PoE ports support IEEE802.3af/at standard. The switch supports Ethernet Ring Protection Switching (ERPS) as well as STP/RSTP/MSTP. It also supports Web-based network management, VLAN, QoS, SNMP, IGMP snooping and other network functions. LED indicators provide the connection status when using SFP option. Rugged design with IP40 enclosure and industrial level 3 ESD protection makes it suitable for many applications such as Intelligent Transportation Systems, IP surveillance and industrial networks. The product is available in either DIN rail or wall-mount configurations.
Features:
- 8* 10/100/1000Base-T Ethernet ports (PoE)
- 2* Gigabit Comb ports
- EPRS (typical recovery time < 30ms over 250 units of connection)
- Different redundancy protocols and standards STP / RSTP / MSTP
- SNMP v1/v2c/v3 & RMON & Port base/802.1Q VLAN network management
- IGMP Snooping multicast function
- WEB, Telnet, SSH, Console (CLI)
- Open and close port, binding MAC and port
- 802.1x network access control
- 802.1Q protocol, Isolate network flow
- Radius Centralized password management
- IEEE802.3af/at standard
- Overload current protection and reverse polarity protection
- LED display shows transmitting and receiving power of the optics
- IP40 enclosure protection
- Unique DIN mount design makes mount and removal easy
