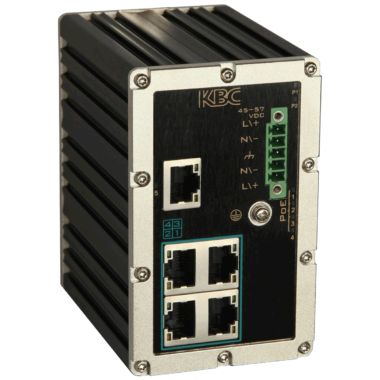

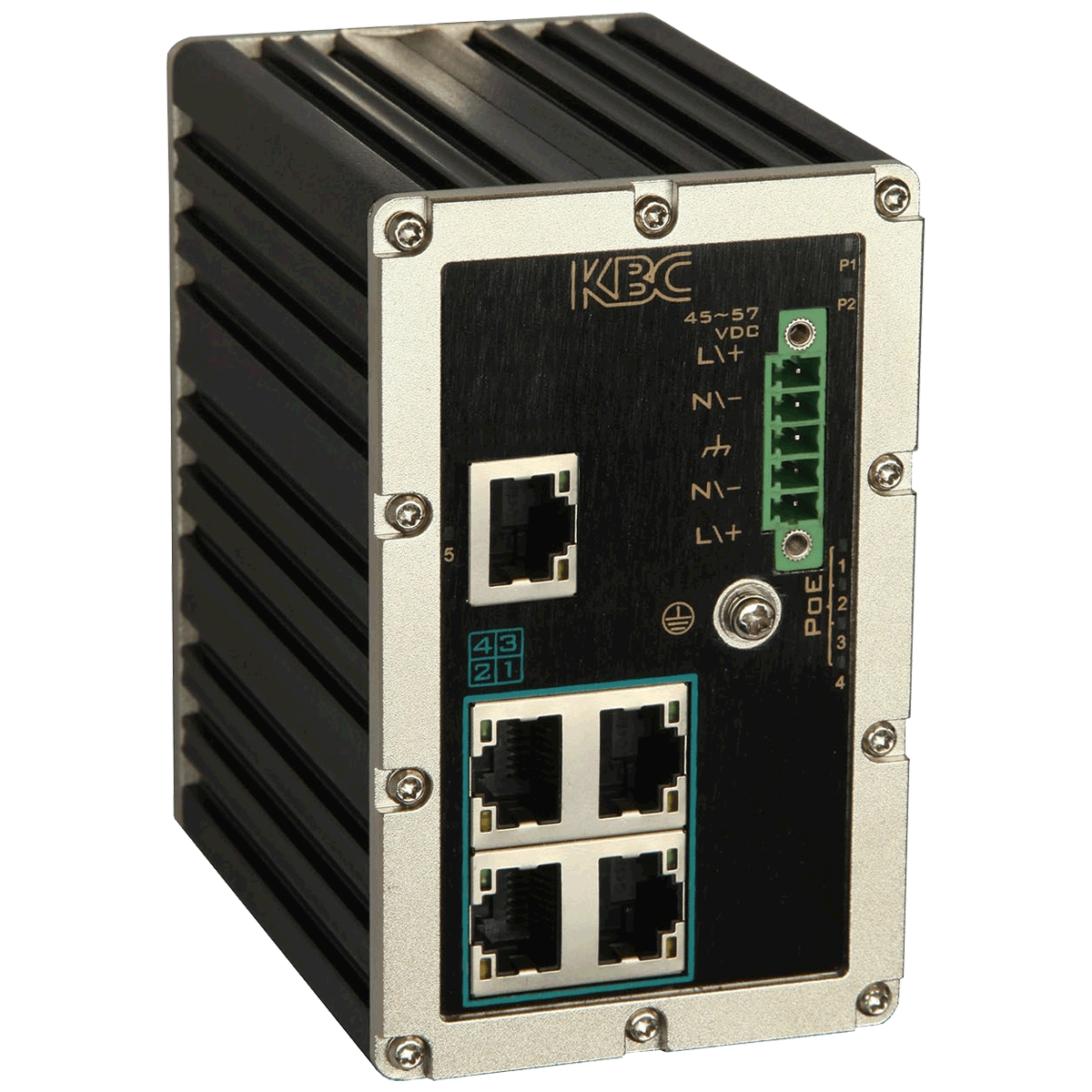

Industrial switch, ESULS4-L1-B

Industrial Ethernet switch, unmanaged, (4) 10/100Mbps IEEE802.3af/at PoE/PoE+ copper ports, (1) 10/100Mbps copper port, IP40 industrial level 3 ESD protection. DIN rail mount. Input 48-57VDC. Requires power supply sold separately.

Ref. ESULS4-L1-B Categories: , , Tags: , , , , , , , , , , ,

Description

The KBC ESULS4-L1-B Series is a high performance, unmanaged industrial switch with 5*10/100M auto sensing copper port, four of five copper ports support PoE/PoE+ which means each port offers a maximum of 30w power. The switch is rugged in design with an IP40 enclosure and industrial level 3 ESD protection. Unique mount design makes DIN mount and removal simple. The rugged design makes it suitable for use in many harsh environment applications such as Power, Transportation, Pipeline, Petrochemicals, Industry automation and IP surveillance.

Features:

  • Unmanaged industrial switch
  • 5*10/100M Base-T(X) ports
  • 4 ports Supporting IEEE802.3af&at
  • Redundant Power supply input
  • Overload current protection and reverse polarity protection
  • Level 3 ESD protection
  • IP40 housing design
  • Supporting DIN rail or wall-mounted
  • Unique DIN mount design makes mounting and removal simple

Specifications

Standards

    • IEEE Standards:
      • IEEE 802.3
      • IEEE 802.3u

Switch Performance

    • Architecture: Store & forward
    • Buffer: 512K
    • Switch Capacity: 1Gbps

PoE

    • Standard: 802.3af/at
    • PSE Type: End-span
    • Power Pin Assignment: 1/2(+), 3/6(-)
    • PoE Power Output: up to 30 watts max per port

Ports

    • 10/100MBase-T: 5, 4 ports with POE/POE+

Power

    • Power Input: 48 ~ 57Vdc
    • Power Consumption: < 8W (No POE output)
    • PoE Budget 120W
    • Overload Current Protection: Yes
    • Reverse Polarity Protection: Yes

Environmental

    • Operating Temperature: -40° ~ +75°C
    • Storage Temperature: -40° ~ +85°C
    • Operating Humidity: 5% to 95% non-condensing

Mechanical

    • Enclosure : IP40
    • Dimensions (L x W x H): 62mm × 86.5mm × 100mm
    • Weight: 0.6kg

Downloads

Datasheet of ESULS4-L1-B
