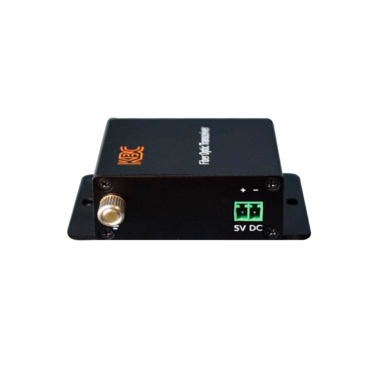

Media Converters MCCL1-S1A/S1B-xyz

Commercial Ethernet Media Converters – 10/100Mbps Ethernet LAN fiber optic media converter “A” side (S1A-xyz), “B” side (MCCL1-S1B-xyz), 1 fiber, 1310nm single mode, 15dB optical loss budget. 25Km range. -10°C to 55°C (14°F to 131°F) operating temp. 5VDC, 2W.

Ref. MCCL1-S1A-xyz ("A" side), MCCL1-S1B-xyz ("B" side) Categories: , , Tags: , ,

Description

The KBC MCCL1 series is a 10/100 Ethernet media converter. It supports transmission of an Ethernet channel over either one or two, multimodeor singlemode optical fibers with full duplex operation. Plug-and-play design makes installation straightforward, with no electrical or optical adjustment needed. LED indicators are provided to show the operational status of the unit.

The series is available in a compact, wall-mount unit that also fits within a 2U 19” rack. Up to 16 MCCL1 media converters can be accommodated in a rack.

KBC MCCL1 10/100 media converters are designed for transmission distances up to 4km for multimode fiber and 25km on singlemode fiber. If the media converter is to be connected to an SFP port, please contact us for advice since SFPs can vary in the level at which they saturate.

Features:

    • Compact footprint
    • 16 units can be inserted into a 19” rack
    • 10/100M auto sensing
    • MDI/MDIX
    • Multimode and singlemode interfaces
    • Single and dual fibers
    • Up to 25km on singlemode fib



Specifications

Standards

  • IEEE Standards:
      • IEEE802.3 10Base-TX
      • IEEE802.3u 100Base-TX

Data

    • Data Format: Ethernet
    • Data Rate: 10/100Mbps Auto-Sensing
    • Data Rate: 10/100Mbps Auto-Sensing
      Half & Full Duplex

Power

    • Power Supply: (2) +5Vdc, 2W

Environmental

    • Operating Temperature: -10° ~ +55°C / 14° ~ +131°F
    • Storage Temperature: -10° ~ +55°C / 14° ~ +131°F
    • Operating Humidity: 0 to 95% non-condensing
    • Mean Time Between Failure (MTBF): > 100,000 Hours

Mechanical

    • Dimensions Compact (L x W x H): 76mm x 70mm x 25mm (2.98” x 2.76” x0.98”)

Connectors

    • 10/100 Electrical: RJ-45
    • Fiber (2): SC or ST
