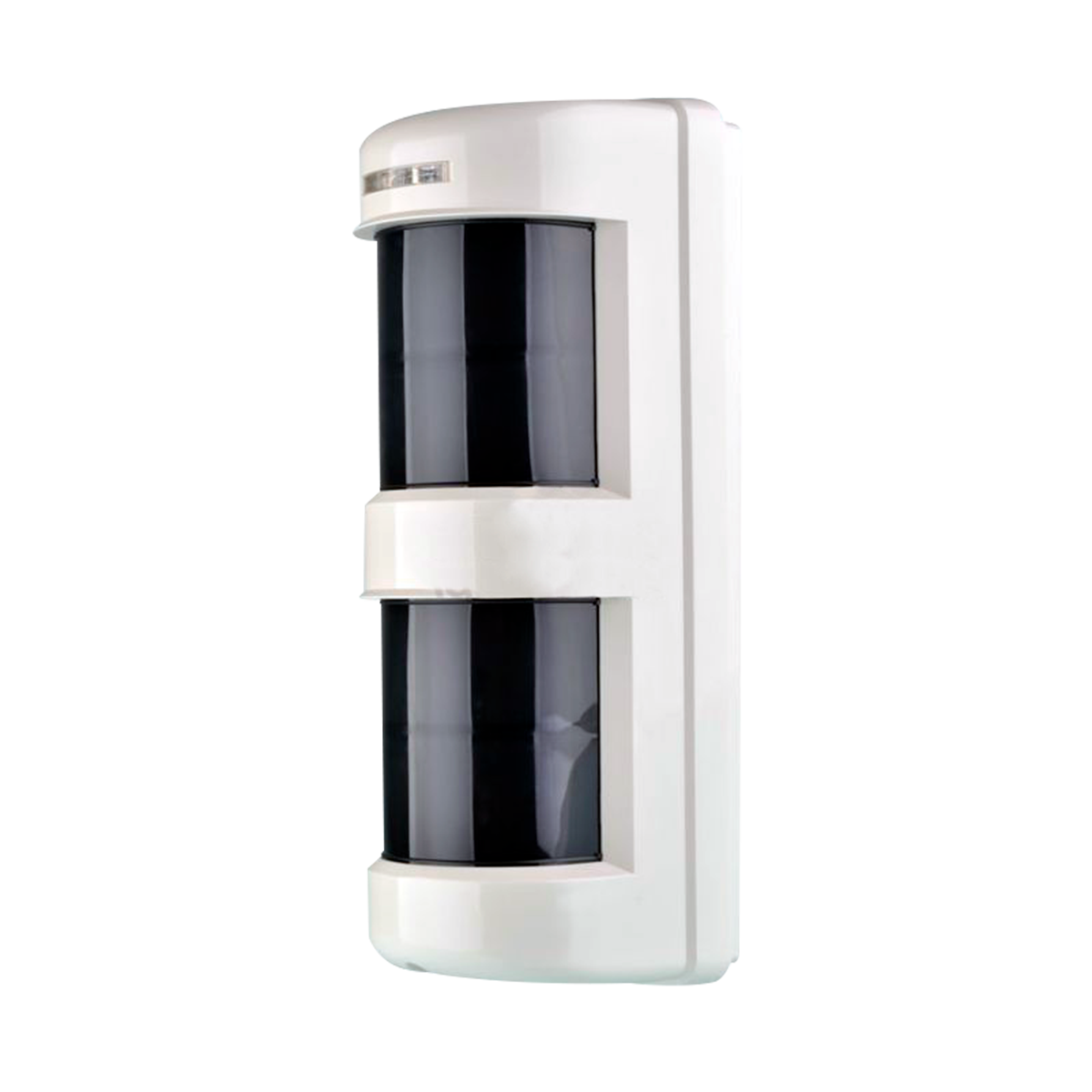

Passive external PIR Infrared Detector MS-12FE/TE

With its 4 x 12m PIR detectors giving up to 180 degrees of effectively pet immune coverage, the MS-12FE remains the professional choice for reliable, trouble-free outdoor motion detection. External PIR: Triple mirror, High Performance.

Ref. MS-12FE/TE Categories: , Tags: , , , ,

Description

With its 4 x 12m PIR detectors giving up to 180 degrees of effectively pet immune coverage, the MS-12FE remains the professional choice for reliable, trouble-free outdoor motion detection. Incorporating key features such as day/night discrimination, variable timer alarm relay, NO/NC output, pulse count and sensitivity adjustments, there really is no need to look further. Dual-Zone: Up to 12m (40ft) x 180 degrees. External PIR: Triple mirror, High Performance.

MS-120TE Dual-Zone system reduces false alarms for reliable outdoor detection. Dual-Zone: Up to 12m (40ft) x 90 degrees.

Features:

  • MS-12FE
    • 2x Dual-Zone sensor heads can resist detection of small animals
    • Advanced Variable Multi-area Detection System
    • Selectable NO/NC relay output with Timer Function
    • Day/Night Sensing
    • Adjustable Pulse Count & Sensitivity
    • 0.8-1.2m Mounting Height
  • MS-12TE
    • Dual-Zone sensor head can resist detection of small animals
    • Advanced Variable Multi-area Detection System
    • Selectable NO/NC relay output with Timer Function
    • Day/Night Sensing
    • Adjustable Pulse Count & Sensitivity
    • 0.8-1.2m Mounting Height

Specifications

  • Model: MS-12TE – MS-12FE
  • Detection system: Passive Infrared
  • Coverage: When horizontal detection Angle: 90° / Detection distance: 12m (40ft) / Horizontal zone: 7 zones / Downward zone: 7 zones – When horizontal detection Angle: 90° / Detection distance: 12m (40ft) / Horizontal zone: 7 zones / Downward zone: 7 zones x2
  • Coverage adjustment: Horizontal : +/-90° – Detection distance : 3 to 12m (10ft to 40ft) – (By adjusting vertical angle of downward zone)
  • Supply voltage: 12 a 30 VDC (non-polarity)
  • Current consumption 35mA MAX. – 40mA MAX.
  • Alarm output: Dry contact relay output N.C./N.O. selectable – Contact capacity : 30V (AC・DC), 0.5A MAX. (Resistive load) – Contact operation : Detection time + off delay – (2sec. -5min. approx.)
  • Detection settings: Daylight : Night (10 lux) – Day and Night
  • Tamper output: Dry contact relay output N/C – Contact capacity : 30V (AC/DC), 0.5A MAX. (Resistive load)
  • Operation LED: Red LED – Blinking at warming up (LED disabled) – Lighting at alarm (LED disabled)
  • Pulse count settings: once / three times (with a switch)
  • Sensitivity adjustment: Approx. 30% (L) – Approx. 170% (H) (By potentiometer)
  • Detection mode: – | AND / OR selectable
  • Connection: Terminals
  • Ambient temperature: -20C to +50C (-4F to +122F)
  • Posición de montaje: Exteriores / Interiores
  • Weight: 390g (13.7oz) | 470g (16.5oz)
  • Appearance: Body : AES resin – Lens : PE resin
  • Appearance Tapping screw : 2 – Area masking sheet : 1 | Tapping screw : 2 – Area masking sheet : 2
