Battery Operated PIR Series TX-114SR / TX-114TR / TX-114FR

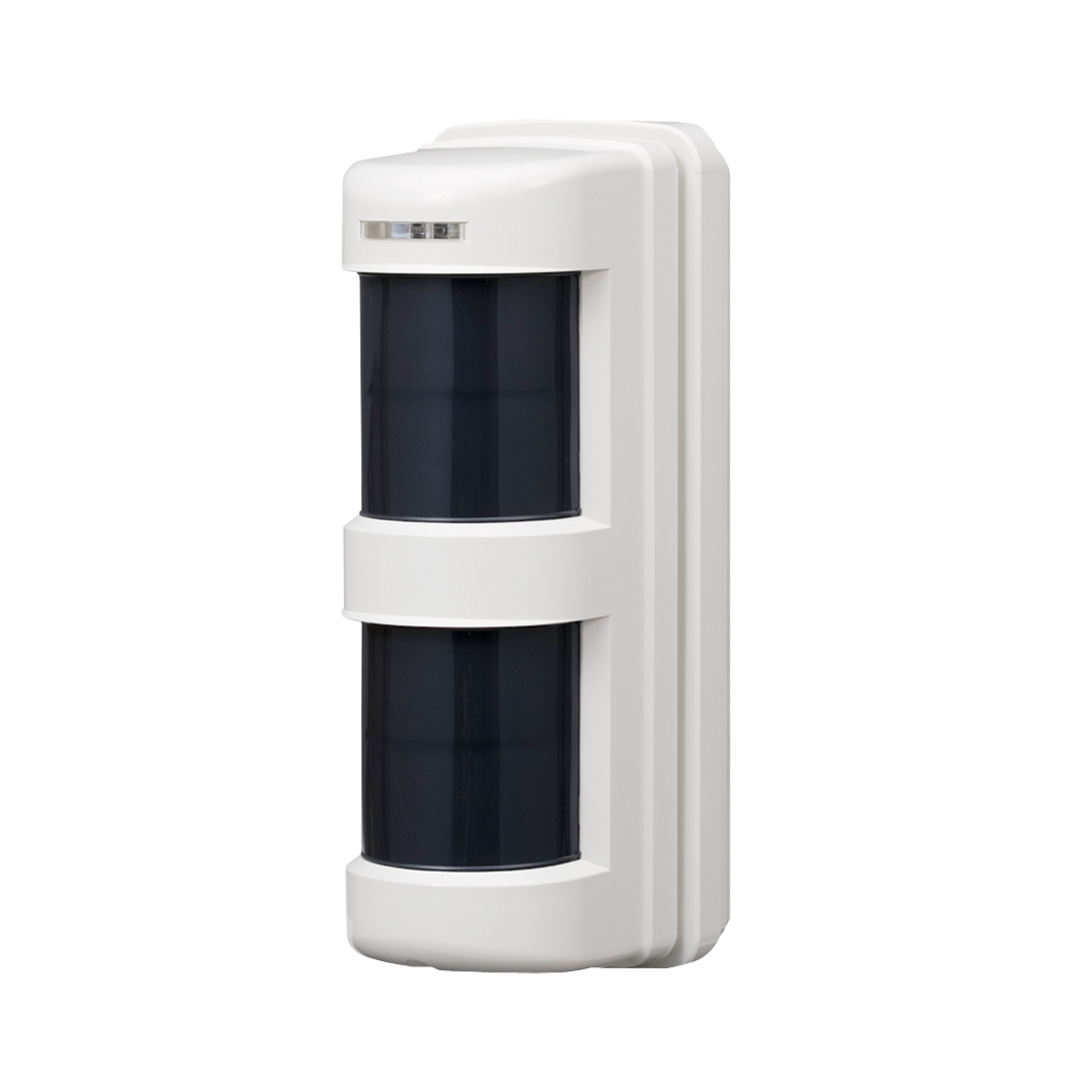

The PIR Series TX-114SR / TX-114TR / TX-114FR are for external use, dual zone and compatible with leading wireless transmitters for rapid deployment in remote or difficult-to-cable-to areas, ideal for triggering CCTV, lighting or warning systems in commercial, domestic and industrial applications.

Ref. OMS-12FE-1TX-114SR / TX-114TR / TX-114FR Categories: , Tags: , , ,

Description

The TX-114SR is compatible with leading wireless transmitters for rapid deployment in remote or difficult-to-cable-to areas, ideal for triggering CCTV, lighting or warning systems in commercial, domestic and industrial applications.

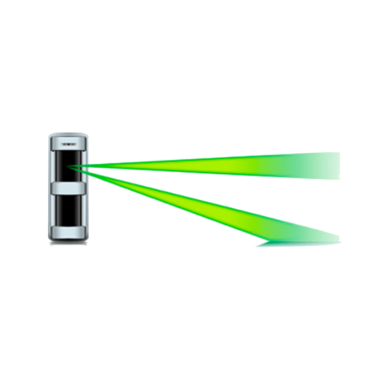

Dual-Zone: Up to 12m (40ft) x 90 degrees

TX-114TR. With ultra-low current consumption for long battery life, and solid state (NO/NC) outputs for both alarm and 3-stage tamper, the new TX-114TR detector is compatible with leading wireless transmitters for rapid deployment in remote or difficult-to-cable-to areas.

The TX-114TR is ideal for triggering CCTV, lighting or warning systems in commercial, domestic and industrial applications.

Dual-Zone: Up to 12m (40ft) x 90 degrees

TX-114FR. With ultra-low current consumption for long battery life, and solid state (NO/NC) outputs for both alarm and 3-stage tamper, the new TX-114FR detector is compatible with leading wireless transmitters for rapid deployment in remote or difficult-to-cable-to areas.

Selectable AND/OR gating ensures maximum stability in even the most challenging environments. The TX-114FR is ideal for triggering CCTV, lighting or warning systems in commercial, domestic and industrial applications.

Dual-Zone: Up to 12m (40ft) x 180 degrees

Features:

  • TX-114SR
    • Dual-Zone sensor head can resist detection of small animals
    • Ultra-Low Current Consumption
    • Powered by 3V to 9V Alkaline or Lithium Battery
    • Can be used with numerous Wireless Transmitter Models (Not Supplied)
    • Adjustable Pulse Count & Sensitivity
    • 0.8-1.2m Mounting Height
  • TX-114TR
    • Dual-Zone sensor head can resist detection of small animals
    • Ultra-Low Current Consumption
    • Powered by 3V to 9V Alkaline or Lithium Battery
    • Can be used with numerous Wireless Transmitter Models (Not Supplied)
    • Adjustable Pulse Count & Sensitivity
    • Front, Mid and Back Tampers
    • 0.8-1.2m Mounting Height
  • TX-114FR
    • Dual-Zone sensor head can resist detection of small animals
    • Ultra-Low Current Consumption
    • Powered by 3V to 9V Alkaline or Lithium Battery
    • Can be used with numerous Wireless Transmitter Models (Not Supplied)
    • Adjustable Pulse Count & Sensitivity
    • Front, Mid and Back Tampers
    • 0.8-1.2m Mounting Height

Specifications

  • Model: TX-114SR | TX-114TR | TX-114FR
  • Detection system: Passive Infrared
  • Coverage: When horizontal detection Angle: 90° – Detection distance: 12m (40ft)
    Horizontal zone: 7 zones – Downward zone: 7 zones | When horizontal detection Angle: 90° – Detection distance: 12m (40ft) – Horizontal zone: 7 zones – Downward zone: 7 zones | When horizontal detection Angle: 90° – Detection distance: 12m (40ft ) – Horizontal zone: 7 zones – Downward zone: 7 zones x2
  • Coverage adjustment Horizontal: 90 degrees Detection distance: 3m to 12m (10ft to 40ft)
    (Adjustable by changing the vertical angle of downward curtain)
  • Supply voltage: 3V to 9VDC Alkaline or Lithium Battery
  • Operation voltage: 2.3V to 10VDC
  • Current consumption: 25μA 5mA/3V (Test mode)
  • Operation: Solid State Switch N.C./N.O. selectable 10VDC · 0.01A Max – •Alarm output (Blue wires) One shot output when detecting human beings (approx. 2sec) – •Tamper output (Green wires) Real time output when the cover is detatched from the unit – •Trouble output , Real time output – when the unit suffers functional trouble. (from wire of Alarm) | Solid State Switch N.C./N.O. selectable 10VDC · 0.01A Max – •Alarm output
    One shot output when detecting human beings (approx. 2sec) – •Tamper output – Real time output – when the cover is detatched from the unit – · when the unit is detatched from the installed wall or pole. – •Trouble output,Real time output when the unit suffers functional trouble. (from terminal of Alarm) | Solid State Switch N.C./N.O. selectable
    10VDC · 0.01A Max – •Alarm output , One shot output when detecting human beings (approx. 2sec) – •Tamper output
    Real time output · when the cover is detatched from the unit · when the unit is detatched from the installed wall or pole. – •Trouble output , Real time output when the unit suffers functional trouble. (from terminal of Alarm)
  • Operation LED: Red LED
    •Blinking for approx.1min at warming-up
    •Lighting for 1sec at detection during walk-test (LED lights only in a test-mode)
    •Blinking when trouble alarm is issued (Lights once every 5 sec)
  • Sensitivity adjustment: Approx. 30% to 170% (by rotary switch)
  • Pulse count: Once/Three times selectable (by dip switch)
  • Alarm prohibition time: 10sec/120sec/300sec/900sec selectable (by dip switches)
  • Detection mode: – | – | AND/OR selectable
  • Ambient temperature: -20°C to +50°C (-4°F to +122°F)
  • Mounting position: Indoor/Outdoor (Wall or Pole)
  • Weight: 400g (14.1oz) | 560g (18oz) | 620g (20oz)
  • Appearance: Body: AES resin | Lens: PE resin
  • Accessories: Adhesive sheet: 1 pc – Mounting screw: 2 pcs – Battery holder: 1 pc Area masking sheet: 1 pc | Pole attachment: 2sets – Mounting screw: 2pcs – Adhesive sheet: 1 pc – Area masking sheet -Battery holder: 1 pc – B.T.Killer:1 pc | Pole attachment:2sets – Mounting screw: 2pcs – Adhesive sheet: 1pc – Area masking sheet – Battery holder:1pc – B.T.Killer:1pc
  • Optional Wall mount attachment (BW-24) – Pole attachment (BP-22) | – | –
