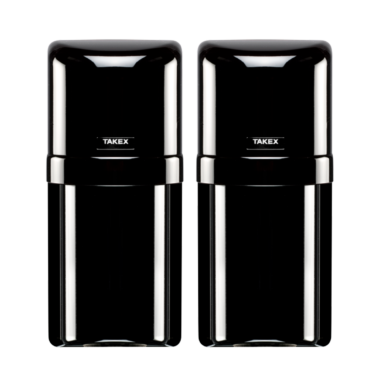

Photoelectric Beams Series PB TK

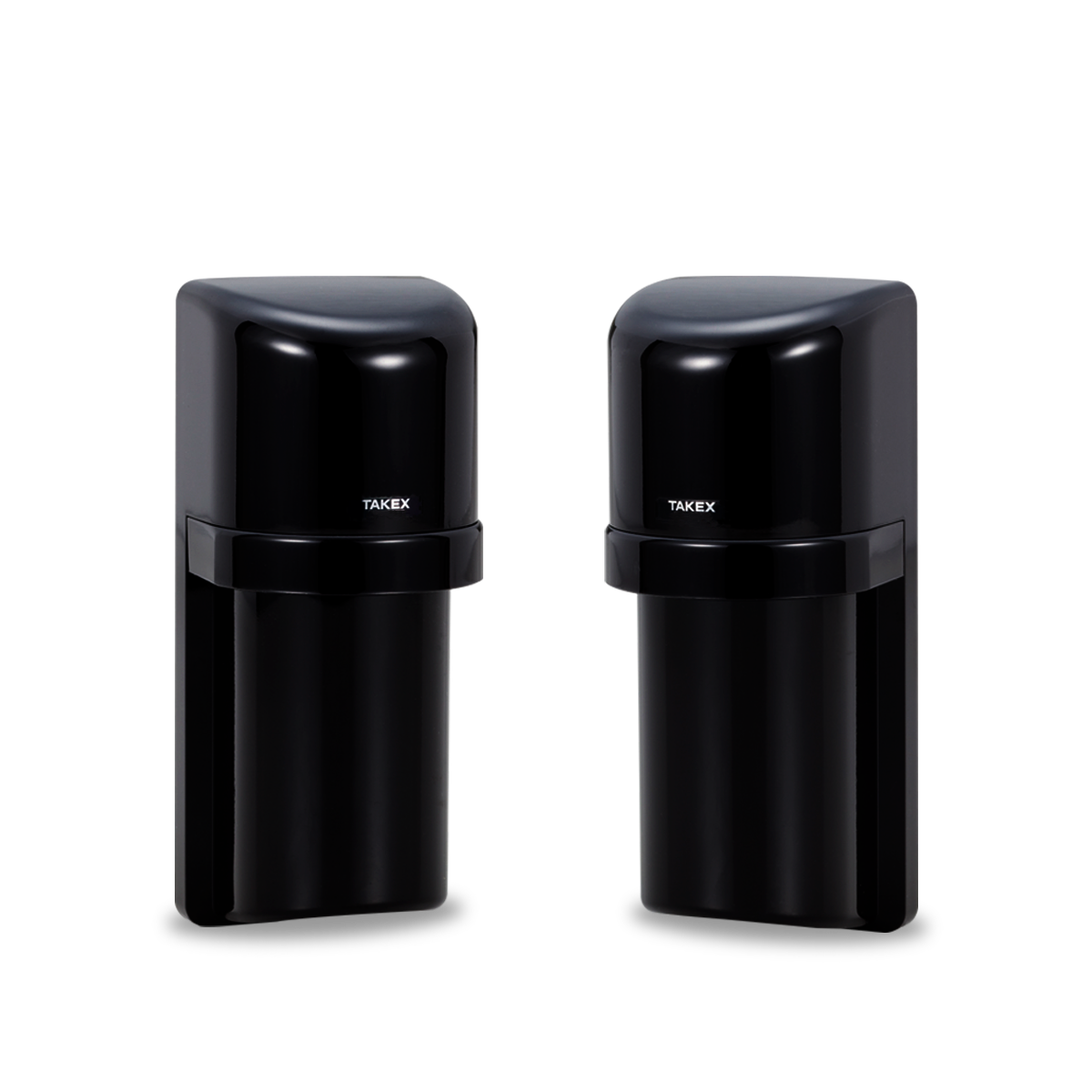

Photoelectric Beams Series PB-TE
Photoelectric Beams Series PB 20/40/60TE

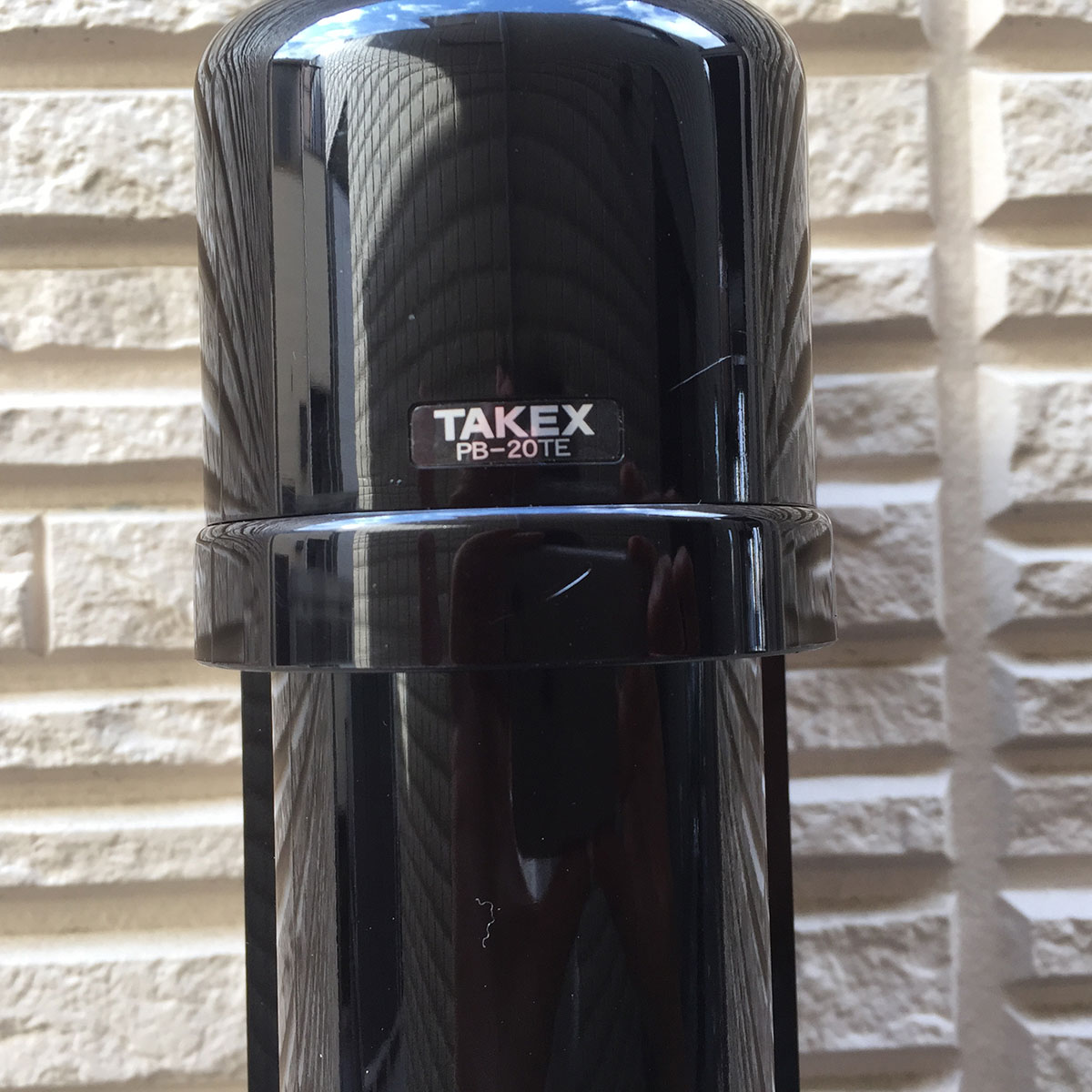

Photoelectric Beams PB-20/40/60TE

TAKEX twin photoelectric beams are designed to meet the highest standards of quality and reliability for photoelectric beam intrusion detection. Unique twin beams are synchronised to work together to reinforce range and stability in severe weather conditions.

Ref. PB-20/40/60TE Categories: , Tags: , , , ,

Description

TAKEX twin photoelectric beams are designed to meet the highest standards of quality and reliability for photoelectric beam intrusion detection. They are synchronised to work together to reinforce range and stability in severe weather conditions.

  • 2 x synchronised high power beams. Beam range: up to outdoor 20m. 4 beam channels
  • 2 x synchronised high power beams. Beam range: up to outdoor 40m. 4 beam channels
  • 2 x synchronised high power beams. Beam range: up to outdoor 60m. 4 beam channels

Features:

  • 2 x synchronised high power beams
  • 4 selectable beam channels to prevent crosstalk
  • Vivid internal body stickers aid beam alignmnet procedure
  • Double modulation for unsurpassed light immunity
  • Auto-gain control (AGC)
  • 50,000 lux sunlight immunity
  • IP54 housing

Specifications

  • Model: PB-20TE – PB-40TE – PB-60TE
  • Detection system: Simultaneous breaking of 2 beams (reflective).
  • Protection distance: Outdoor Outdoor 20m or less / Indoor 40m or less – Outdoor 40m or less / Indoor 80m or less – Outdoor 60m or less / Indoor 120m or less
  • Max. beam range (approx.): 200 m – 400 m- 600 m
  • Response Time: 50msec. to 700msec. (Variable at pot)
  • Supply voltage: 12V to 30VDC (Non-polarity)
  • Current consumption: 55mA or less – 75mA or less – 80mA or less
  • Alarm output: Dry contact relay output form C – Contact action : Interruption time +
    delay time (1 to 3 sec.) – Contact capacity : 30V (AC/DC) 0.5A or less
  • Tamper output: Dry contact relay 1b N/C – Contact action : Activated when cover is detached (TX and RX) – Contact capacity : 30V (AC/DC) 0.5A or less
  • Alarm LED: Red LED (Receiver) | ON : when an alarm is initiated
  • Attenuation LED: Red LED (Receiver) | ON : when beam is attenuated
  • Functions: Beam frequency changeover (4-ch), Monitor jack output, AGC circuit, Frost proof cover
  • Ambient temperature range: – 25° C to + 60° C
  • Mounting positions: Indoor / Outdoor
  • Wiring: Terminals
  • Weigh: Transmitter : 380g / Receiver : 400g
  • Appearance: PC resin (wine red)

Accesories

If you need some information about related accessories, please consult us.

Downloads

Datasheet PB-20-40-60TE TAKEX

Manual PB-20-40-60TE TAKEX
