Power Supply – GST18A12

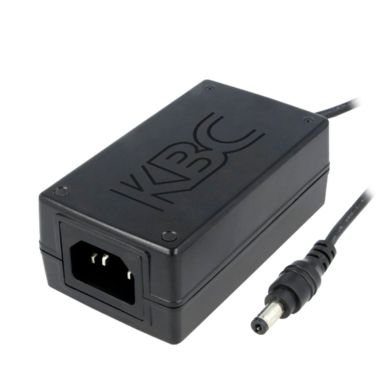

Power Supply – GST18A12 18W AC-DC industrial power plug. 90-264VAC in, 12VDC out, -30°C to +70°C (-22°F to 158°F) operating temperature range.

Ref. GST18A12 Categories: , Tags: ,

Description

The KBC GST18A12 18W AC-DC industrial power plug. 90-264VAC in, 12VDC out, -30°C to +70°C (-22°F to 158°F) operating temperature range.

Features :

  • Universal AC input/Full range
  • 3 pole Ac inlet IEC320-C14, Class I power unit
  • No load power consumption <0.075W
  • Energy efficiency Level VI
  • Comply with EISA 2007(DoE, NRCan, Korea K-MEMPS
  • Protections: Short Circuit / Overload / Over voltage
  • Fully enclosed plastic case
  • Pass LPS
  • Led indicator for power on

Specifications

OUTPUT

  • DC Voltage: 12V
  • Rated Current: 1.50A
  • Rated Power: 0 ~ 1.50A



INPUT

  • VOLTAGE RANGE: 85 ~ 264VAC
  • LEAKAGE CURRENT:  47 ~ 63Hz

PROTECTION

  • Overload: 110 ~ 150% rated output power
  • Over Voltage: 110 ~ 1401% rated output voltage

ENVIRONMENT

  • Working Temp: -20 ~ +70(Refer to “Derating Curve”)°
  • Working Humidity: 20 ~ 90% RH non-condensing
  • Storage Temp. Humidity: 40 ~ +85, 10 ~ 95% RH°
  • Temp. coefficient: ±°C °C0.03%/(0 ~ 50)
  • Vibration: omponent:10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes; Mounting: Compliance to IEC60068-2-6
