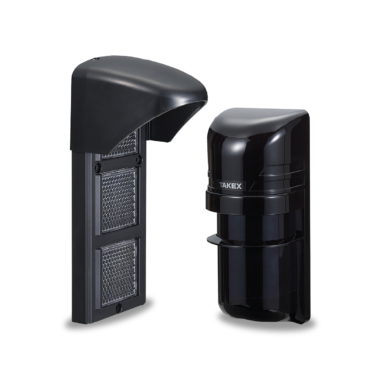

Reflective Beams PR-30BE TAKEX

Benchmark Innovation Awards: 2020 Site Protection Winner.

The PR-30BE Reflective Beams uses Time of Flight technology to determine detecting distance with unprecedented accuracy by measuring both light reception level and timing, meaning no lost alarms from highly reflective objects such as white vehicles.

Description

The PR-30BE Reflective Beams uses Time of Flight technology to determine detecting distance with unprecedented accuracy by measuring both light reception level and timing, meaning no lost alarms from highly reflective objects such as white vehicles.

The PR-30BE can be used where conventional beams that require power at both ends are impractical due to either installation cost or environmental concerns, such as across waterways, roads, and runways; providing the performance of a traditional point-to-point beam sensor with the single-ended convenience of a PIR detector.

Sized like a twin beam but with several features carried over from the PB-IN and PXB flagship quad series, the PR-30BE includes environmental monitoring which dynamically optimises performance to match changing conditions with a dedicated output giving a pre-alarm warning if required. Also included is the popular audible alignment tone function which together with the dual-ring viewfinder and monitor output voltage options, ensure easy beam alignment.

The PR-30BE also includes response time adjustment, +/-90 degrees horizontal and +/-5 degrees vertical adjustment, and a newly redesigned reflector assembly for a minimum operational distance of just 0.5m.

Benchmark Innovation Awards: 2020 Site Protection Winner.

Features:

  • Easy Installation
  • More Reliable Protection
  • Easy Beam Alignment
  • Flexible Protection Area Setting
  • Response Time Adjustment
  • Easy Operation Check

Specifications

  • Detection system:  Near infrared beam interruption system (reflective).
  • Protection distance: Outdoor 0.5 to 30m / Indoor 0.5to 40m
  • Supply voltage:  0.5V to 30V DC (Non-polarity)(Class 2 powered device)
  • Current consumption:  200mA or less, 160 mA or less (12V DC) 80 mA or less (24V DC)
  • Alarm output: Dry contact relay Dry contact relay N.O. /N.C.Contact capacity : 30V (AC/DC) 0.25A or lessRelay operation : Interruption time (minimum 2 secs).
  • Environmental output:  Dry contact relay Dry contact relay N.O. /N.C.Contact capacity : 30V (AC/DC) 0.25A or less.
  • Tamper output: Dry contact relay 1b (N/C)Action : Activated when cover is detached.Contact capacity : 30V (AC/DC) 0.25A or less.
  • Response time: 0.05 / 0.1 / 0.25 / 0.5sec.
  • Weight: Sensor: 370g. Reflector: 190g



Accesories

If you need some information about related accessories, please consult us.

Downloads

Datasheet of Man PR-30BE

Datasheet of Data_PR-30BE
