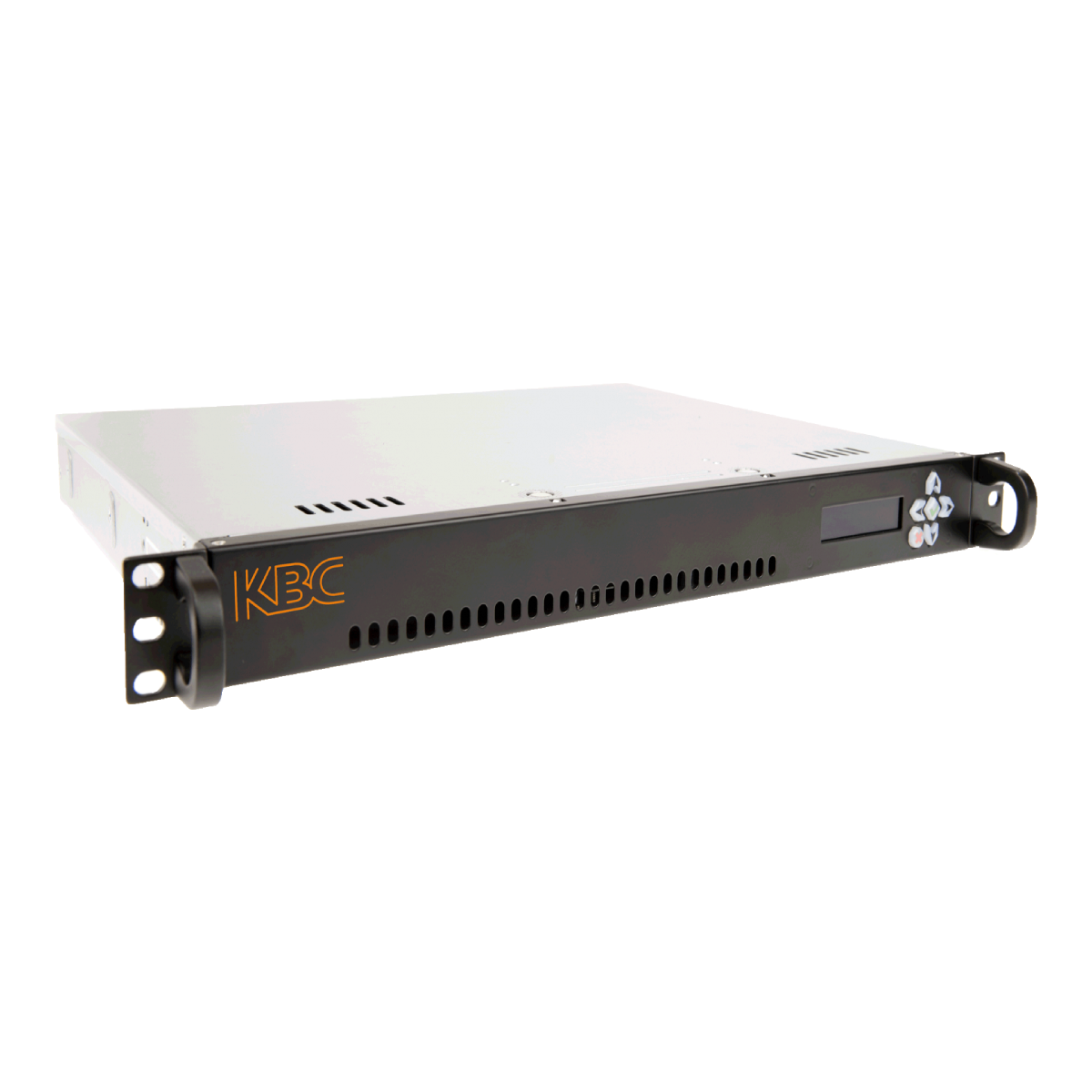

VPN hardware ThruLink™ High Capacity Plus THLK-H4-Rz

ThruLink™ High Capacity Plus, 200Mbps, 1 x LAN, 1 x WAN, TL2 firmware, 1RU rackmount.

Description

ThruLink™ High Capacity Plus, 200Mbps, 1 x LAN, 1 x WAN, TL2 firmware, 1RU rackmount.

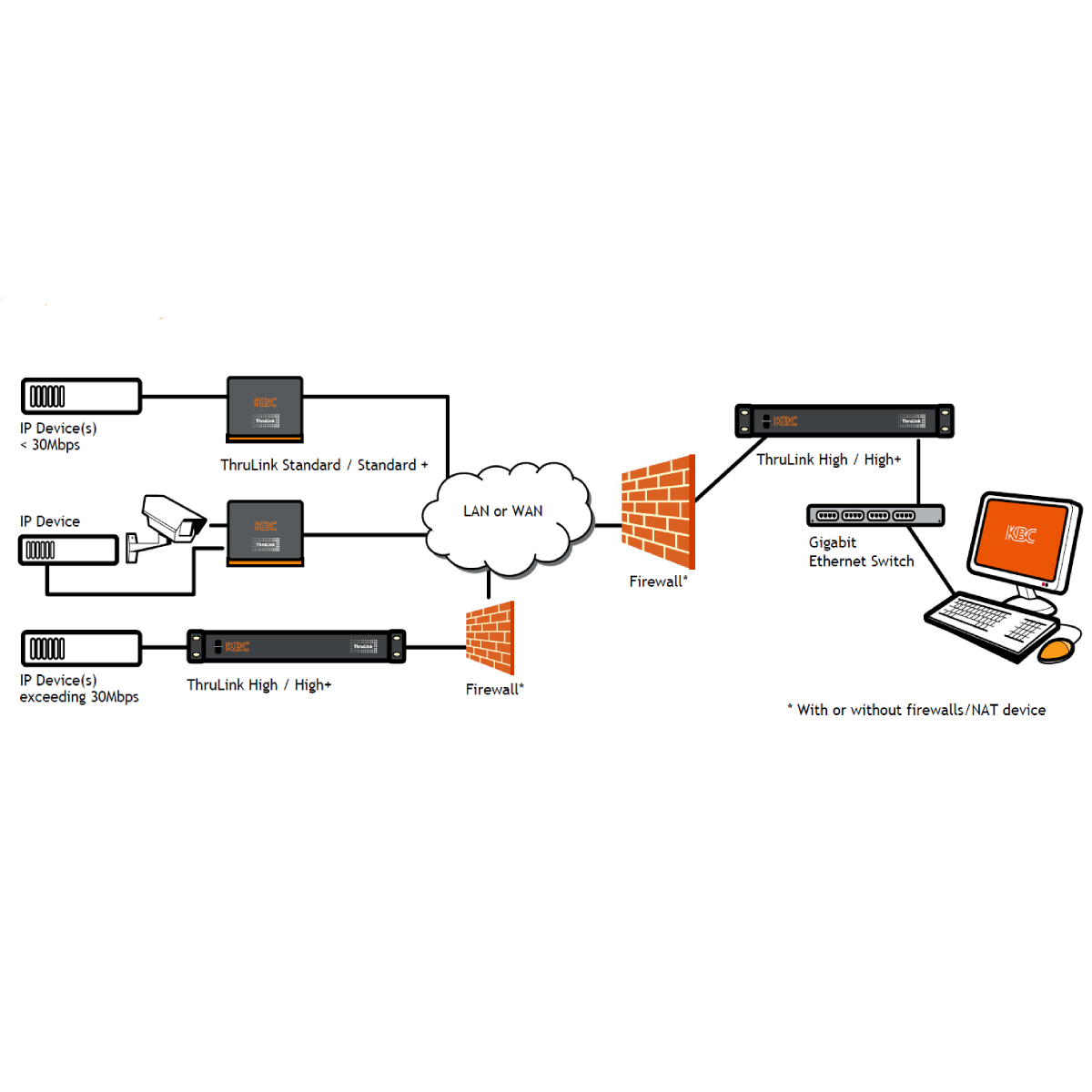

ThruLink is a hardware VPN device that allows secure communications to be established over any standard, public or private TCP/IP network. ThruLink performs behind firewalls, NAT devices and through almost any other type of network configura-tion and offers encrypted communication for all IP protocols regardless of the type of traffic. When deployed, ThruLink provides a secure and encrypted tunnel for network communications that will not affect TTL, UPnP, VLAN information, broadcast, multicast, or any other traffic. In addition to star-based applications, ThruLink supports mesh-based networks allowing direct connection without the need for central server authentication.

Feature:

  • Provides secure and encrypted communication via tunnelling
  • Rack-mount style server
  • Easy to use GUI interface
  • Eliminates the need to make network changes
  • Failover functionality
  • Diagnostic tools: network traffic monitoring, basic traceroute and ping function
  • DDNS, DHCP, SNMPv3

Specifications

Throughput:

    • High Capacity 100Mbps
    • High Capacity Plus 200Mbps

Encryption:

    • AES: 128/192/256bit
    • Blowfish: 128/192/256bit
    • Camellia: 128/192/256bit
    • SHA1, SHA256(1)
    • RSA: 2048
    • FIPS 140-2(2)

Management: SNMP v2/3

User interface: Web GUI

Environmental

    • Operating Temperature: +5º~+35ºC/+41º~+95ºF
    • Non-operating Temperature: -40º~+70ºC/-+41º~+158ºF
    • Operating Humidity: 0 to 95% non-condensing
    • Mean Time Between Failure (MTBF) >100,000 hours
    • Dimensions(3): 394 x 437 x 44mm / 15.5 x 17.2 x 1.7″ / 19″ rack-mountable 1U

Connectors

    • 10/100/1000: 2 x RJ45
    • Serial: DB9
    • Power: IEC
  1. Automatically set depending on encryption type used
  2. Please contact us for FIPS compliant encryption library
  3. Product body dimensions. Please contact KBC Networks for product drawing and dimensions of mount
